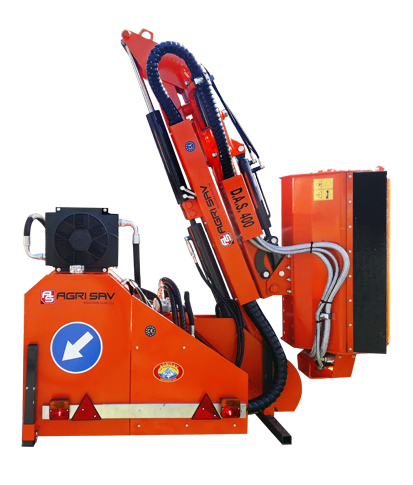

Brush cutters D.A.S. series 3


Brush cutters D.A.S. series 3
Technical data
Model DAS: 400/3 450/3 500/3 550/3 600/3
Maximum extension (mm): 4300 4800 5300 5800 6300
Weight (Kg): 670 710 750 900 950
Oil reservoir (L): 170 170 170 170 170
Rotor (Rpm): 3000 3000 3000 3000 3000
P.d.f. (Rpm): 540 540 540 540 540
Head angle: 190° 190° 190° 190° 190°
Headboard available (mm): 800 / 1000 1000 / 1200 1000 / 1200 1000 / 1200 1000 / 1200
Power required (Hp): 60/80 70/90 80/100 80/100 90/110


Download the brochure

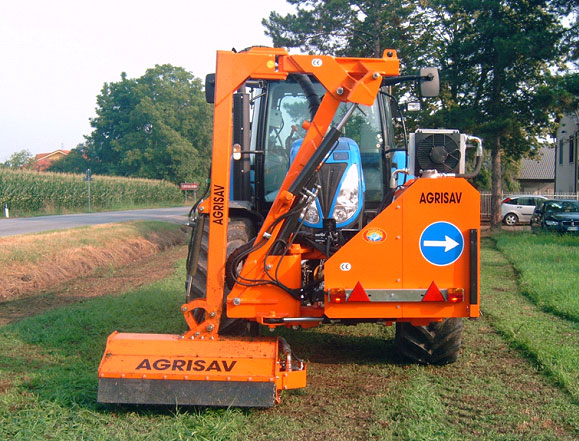

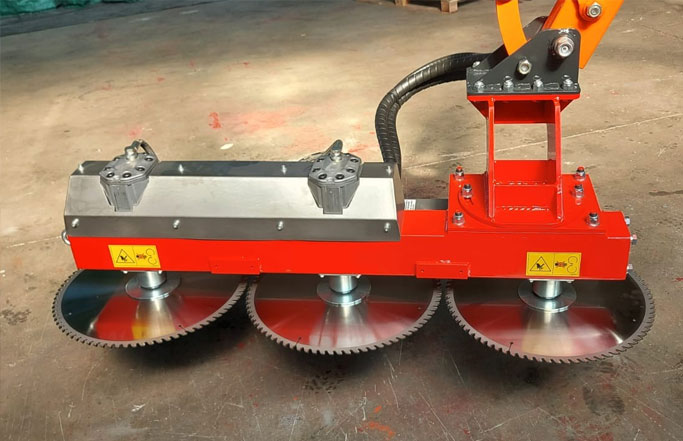

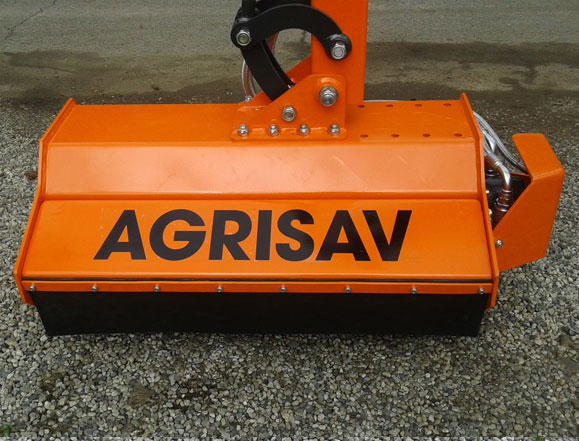

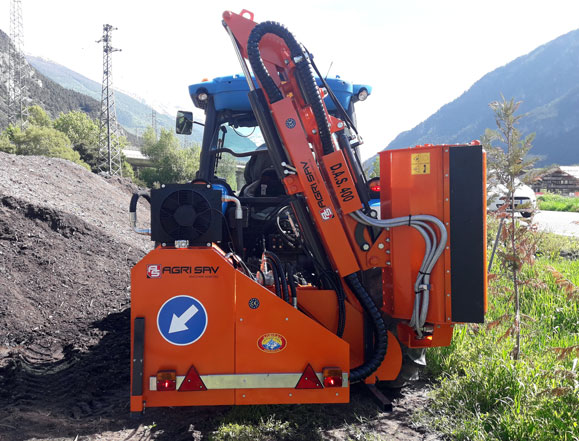

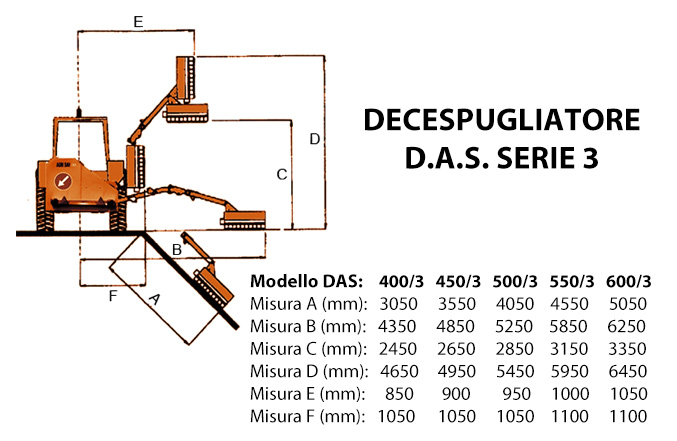

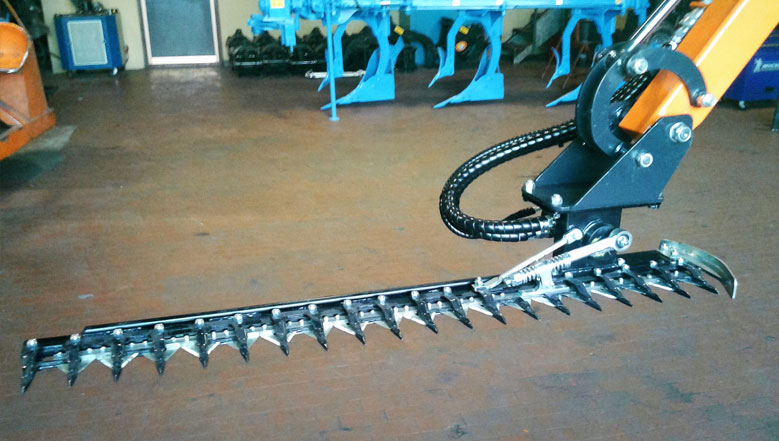

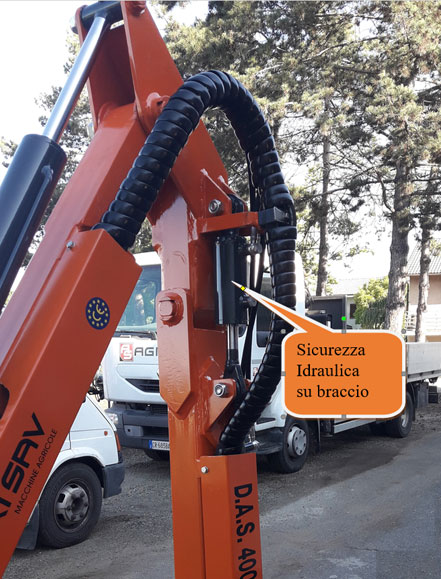

Measurements of the D.A.S. series 3 D.A.S. series 3 D.A.S. series 3 D.A.S. series 3 D.A.S. series 3 with cutter bar D.A.S. series 3 D.A.S. series 3 D.A.S. series 3 D.A.S. series 3 D.A.S. series 3 - Hydraulic safety on boom D.A.S. series 3 D.A.S. series 3

Standard equipment:
• Universal three point hitch
• Controls with cable mm 2500
• Reversible cutter hydraulic motor 40 HP
• Cutting rotation inverter
• Floating system (selflevelling the ground)
• Hydraulic safety on second arm
• Roller adjustable in height
• Adjustable front protection
• Rear protection
• Direct transmission

Accessories:
• Electrical panel commands

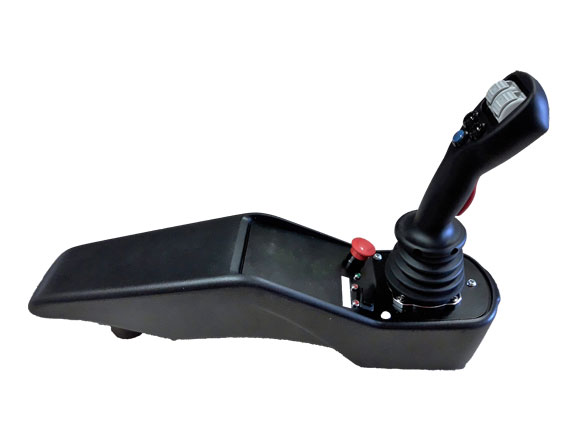

• Electric controls with joystick
• Electric remote control
• PTO shaft
• Oil cooler
• Hydraulic swivel head
• Mechanical swivel head
• Hydro pneumatic accumulator on the first arm
• Telescopic arm
• Cutter bar
• Transmission with belt
• Navigation bar
• Fixing the tractor pullers
